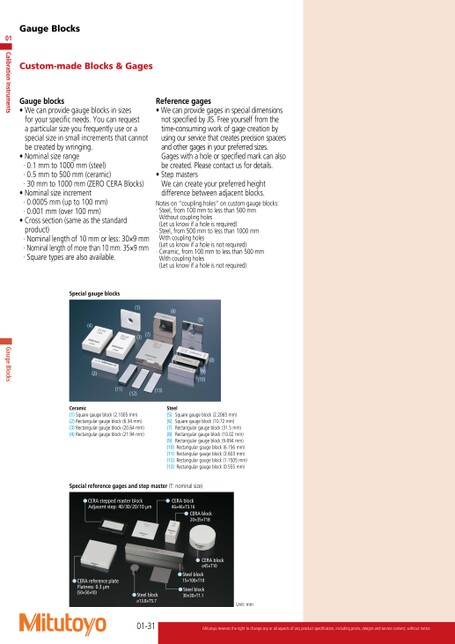

GaugeBlocksCustom-madeBlocks&GagesGaugeblocks•Wecanprovidegaugeblocksinsizesforyourspecicneeds.Youcanrequestaparticularsizeyoufrequentlyuseoraspecialsizeinsmallincrementsthatcannotbecreatedbywringing.•Nominalsizerange·0.1mmto1000mm(steel)·0.5mmto500mm(ceramic)·30mmto1000mm(ZEROCERABlocks)•Nominalsizeincrement·0.0005mm(upto100mm)·0.001mm(over100mm)•Crosssection(sameasthestandardproduct)·Nominallengthof10mmorless:30×9mm·Nominallengthofmorethan10mm:35×9mm·Squaretypesarealsoavailable.Referencegages•WecanprovidegagesinspecialdimensionsnotspeciedbyJIS.Freeyourselffromthetime-consumingworkofgagecreationbyusingourservicethatcreatesprecisionspacersandothergagesinyourpreferredsizes.Gageswithaholeorspeciedmarkcanalsobecreated.Pleasecontactusfordetails.•StepmastersWecancreateyourpreferredheightdifferencebetweenadjacentblocks.(Letusknowifaholeisrequired)Noteson“couplingholes”oncustomgaugeblocks:·Steel,from100mmtolessthan500mmWithoutcouplingholes·Steel,from500mmtolessthan1000mmWithcouplingholes·Ceramic,from100mmtolessthan500mmWithcouplingholes(Letusknowifaholeisnotrequired)(Letusknowifaholeisnotrequired)Specialgaugeblocks(4)(2)(1)(6)(7)(3)(5)(8)(9)(10)(11)(12)(13)Ceramic(1)Squaregaugeblock(2.1005mm)(2)Rectangulargaugeblock(6.34mm)(3)Rectangulargaugeblock(20.64mm)(4)Rectangulargaugeblock(21.94mm)Steel(5)Squaregaugeblock(2.2065mm)(6)Squaregaugeblock(10.72mm)(7)Rectangulargaugeblock(31.5mm)(8)Rectangulargaugeblock(10.02mm)(9)Rectangulargaugeblock(9.694mm)(10)Rectangulargaugeblock(6.156mm)(11)Rectangulargaugeblock(3.603mm)(12)Rectangulargaugeblock(1.1505mm)(13)Rectangulargaugeblock(0.555mm)Specialreferencegagesandstepmaster(T:nominalsize)●CERAsteppedmasterblockAdjacentstep:40/30/20/10μm●CERAblock46×46×T3.16●CERAblock20×35×T18●CERAblockø45×T10●Steelblock15×100×T10●Steelblock30×30×T1.1Unit:mm●CERAreferenceplateFlatness:0.3μm(50×50×10)●Steelblockø13.8×T5.701-31
| <
|
> |
>>
